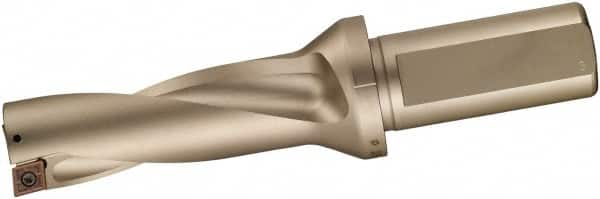

Sumitomo - 1.692" Max Drill Depth, 2xD, 20mm Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Straight Shank
Item #: 53962387
Brand: Sumitomo
Model #: 2A00W2B
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | WDX |
| Drill Diameter (mm) | 20.00 |
| Drill Diameter (Decimal Inch) | 0.7874 |
| Maximum Drill Depth (Decimal Inch) | 1.6920 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 4.7830 |
| Insert Compatibility | WDXT 063006 |
| Flute Length (Decimal Inch) | 1.6920 |
| Body Length (Decimal Inch) | 2.2830 |
| Shank Length (Decimal Inch) | 2.5000 |
| Collar Diameter (Decimal Inch) | 1.2990 |
| Series | SumiDrill |
