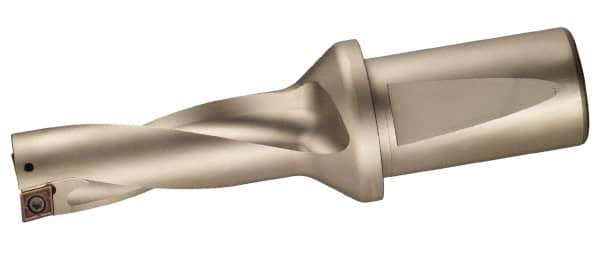

Sumitomo - 49.5mm Max Drill Depth, 3xD, 15.5mm Diam, Indexable Insert Drill - 2 Inserts, 20mm Shank Diam, Straight Shank
Item #: 53962692
Brand: Sumitomo
Model #: 2A00257
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | WDX |
| Drill Diameter (mm) | 15.50 |
| Drill Diameter (Decimal Inch) | 0.6102 |
| Maximum Drill Depth (mm) | 49.50 |
| Maximum Drill Depth (Decimal Inch) | 1.9488 |
| Shank Type | Straight |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 108.50 |
| Overall Length/Projection (Decimal Inch) | 4.2717 |
| Insert Compatibility | WDXT 052504 |
| Flute Length (mm) | 49.50 |
| Flute Length (Decimal Inch) | 1.9488 |
| Body Length (Decimal Inch) | 2.5394 |
| Body Length (mm) | 64.50 |
| Shank Length (mm) | 44.00 |
| Shank Length (Decimal Inch) | 1.7323 |
| Collar Diameter (mm) | 30.00 |
| Collar Diameter (Decimal Inch) | 1.1811 |
| Series | SumiDrill |
