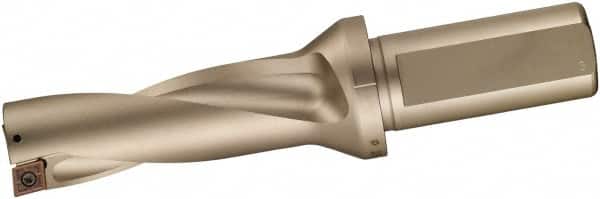

Sumitomo - 33mm Max Drill Depth, 2xD, 15mm Diam, Indexable Insert Drill - 2 Inserts, 20mm Shank Diam, Straight Shank
Item #: 53962890
Brand: Sumitomo
Model #: 2A00245
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | WDX |
| Drill Diameter (mm) | 15.00 |
| Drill Diameter (Decimal Inch) | 0.5906 |
| Maximum Drill Depth (mm) | 33.00 |
| Maximum Drill Depth (Decimal Inch) | 1.2992 |
| Shank Type | Straight |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 92.00 |
| Overall Length/Projection (Decimal Inch) | 3.6220 |
| Insert Compatibility | WDXT 042004 |
| Flute Length (mm) | 33.00 |
| Flute Length (Decimal Inch) | 1.2992 |
| Body Length (Decimal Inch) | 1.8898 |
| Body Length (mm) | 48.00 |
| Shank Length (mm) | 44.00 |
| Shank Length (Decimal Inch) | 1.7323 |
| Collar Diameter (mm) | 28.00 |
| Collar Diameter (Decimal Inch) | 1.1024 |
| Series | SumiDrill |
