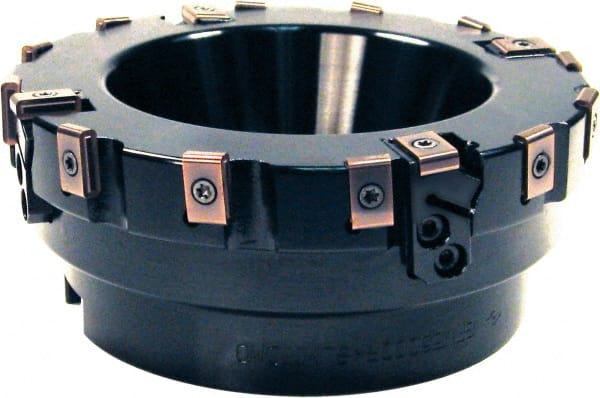

Sumitomo - 24 Inserts, 7.342" Cut Diam, 2-1/2" Arbor Diam, Indexable Square-Shoulder Face Mill - 2-1/2" High, LNGX 1605.. Insert Compatibility, Through Coolant, Series SumiMill
Item #: 53964383
Brand: Sumitomo
Model #: U102038
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 7.3420 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Overall Height (Decimal Inch) | 2.5000 |
| Insert Compatibility | LNGX 1605.. |
| Series | SumiMill |
| Through Coolant | Yes |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 24 |
| Insert Holding Method | Screw |
| Cutter Style | GFV |
| Hub Diameter (Decimal Inch) | 6.0400 |
| Keyway Width (Decimal Inch) | 1.1360 |
| Maximum Body Diameter (Decimal Inch) | 8.0000 |
| Complete Insert Compatibility | LNGX 160516PNFN-W |
| Toolholder Material | Cast Iron |
