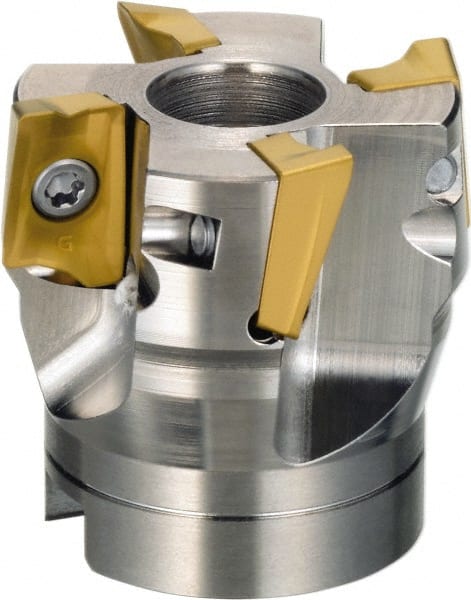

Sumitomo - 6 Inserts, 125mm Cut Diam, 38.1mm Arbor Diam, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 63mm High, AX.T 1705 Insert Compatibility, Through Coolant, Series WaveMill
Item #: 53964508
Brand: Sumitomo
Model #: 2900585
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Cutting Diameter (Decimal Inch) | 4.9213 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | AX.T 1705 |
| Series | WaveMill |
| Through Coolant | Yes |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | WEX |
| Keyway Width (mm) | 15.90 |
| Keyway Width (Decimal Inch) | 0.6260 |
| Minimum Insert Radius (Decimal Inch) | 0.0160 |
| Complete Insert Compatibility | AXET 1705; AXMT 1705 |
