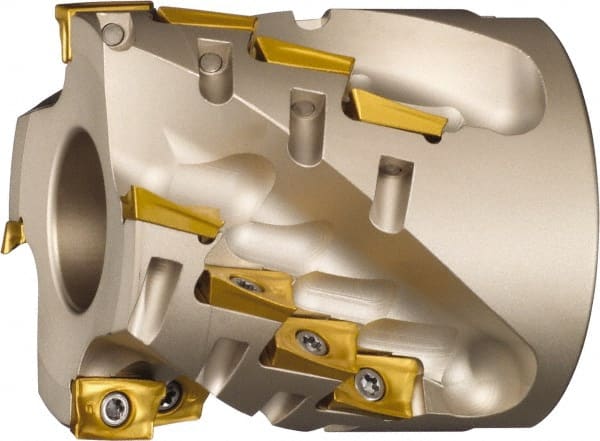

Sumitomo - 20 Inserts, 2-1/2" Cut Diam, 2-1/2" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 2-3/4" High, AXMT17 & AXET17 Insert Compatibility, Through Coolant, Series WaveMill
Item #: 53964664
Brand: Sumitomo
Model #: 2900W47
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Overall Height (Decimal Inch) | 2.7500 |
| Insert Compatibility | AXMT17; AXET17 |
| Series | WaveMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 2.5000 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 20 |
| Insert Holding Method | Screw |
| Cutter Style | WRX |
| Keyway Width (Decimal Inch) | 2.5000 |
| Minimum Insert Radius (Decimal Inch) | 0.0160 |
| Complete Insert Compatibility | AXET 1235; AXMT 1235 |
