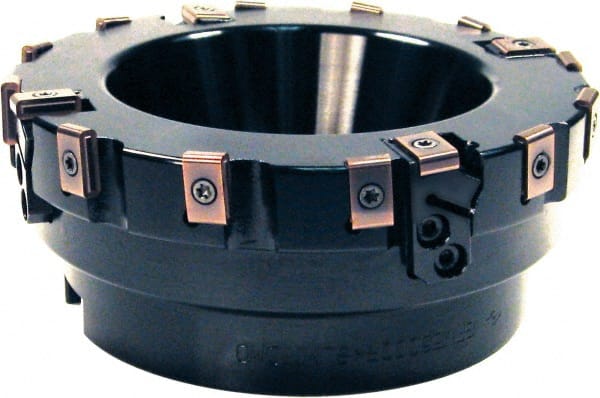

Sumitomo - 8 Inserts, 2.352" Cut Diam, 1" Arbor Diam, Indexable Square-Shoulder Face Mill - 2" High, LNGX 1605.. Insert Compatibility, Series SumiMill
Item #: 53965000
Brand: Sumitomo
Model #: U104037
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.3520 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | LNGX 1605.. |
| Series | SumiMill |
| Through Coolant | No |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | GFV |
| Hub Diameter (Decimal Inch) | 2.9000 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Maximum Body Diameter (Decimal Inch) | 3.0000 |
| Complete Insert Compatibility | LNGX 160516PNFN-W |
| Toolholder Material | Cast Iron |
