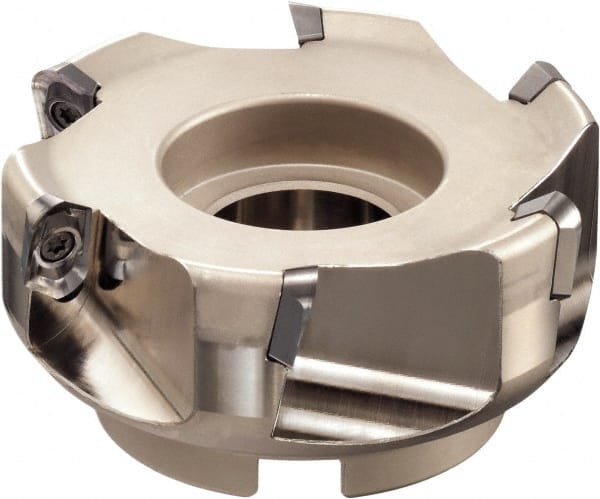

Sumitomo - 2 Inserts, 50mm Cut Diam, 16mm Arbor Diam, 22.99mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 50mm High, AECT 1604 Insert Compatibility, Through Coolant, Series WaveMill
Item #: 53965216
Brand: Sumitomo
Model #: 2200ABV
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | AECT 1604 |
| Series | WaveMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 22.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.9050 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Cutter Style | WAX |
| Keyway Width (mm) | 8.40 |
| Keyway Width (Decimal Inch) | 0.3307 |
| Complete Insert Compatibility | AECT 1604 |
