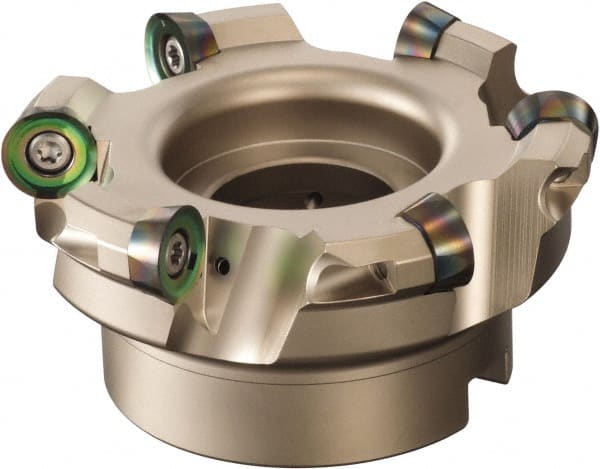

Sumitomo - 6" Cut Diam, 1/2" Max Depth, 1-1/2" Arbor Hole, 8 Inserts, QPMT 8424 Insert Style, Indexable Copy Face Mill - WRCX Cutter Style, 2-1/2 High, Series WaveMill
Item #: 53965430
Brand: Sumitomo
Model #: 2200W6K
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 6.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Overall Height (Decimal Inch) | 2.5000 |
| Series | WaveMill |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | QPMT 8424 |
| Cutter Style | WRCX |
| Through Coolant | No |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 3.7000 |
| Keyway Width (Decimal Inch) | 0.6250 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | QPMT 8424PPEN |
