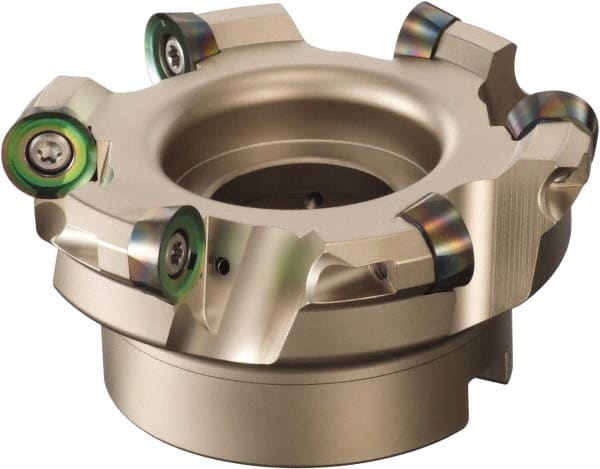

Sumitomo - 5" Cut Diam, 3/8" Max Depth, 1-1/2" Arbor Hole, 6 Inserts, QP.T 6416 Insert Style, Indexable Copy Face Mill - WRCX Cutter Style, 2-1/2 High, Series WaveMill
Item #: 53965620
Brand: Sumitomo
Model #: 2200W6F
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Overall Height (Decimal Inch) | 2.5000 |
| Series | WaveMill |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | QP.T 6416 |
| Cutter Style | WRCX |
| Through Coolant | No |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 3.7500 |
| Keyway Width (Decimal Inch) | 0.6250 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | QPET 6416PPENS; QPMT 6416PPEN |
