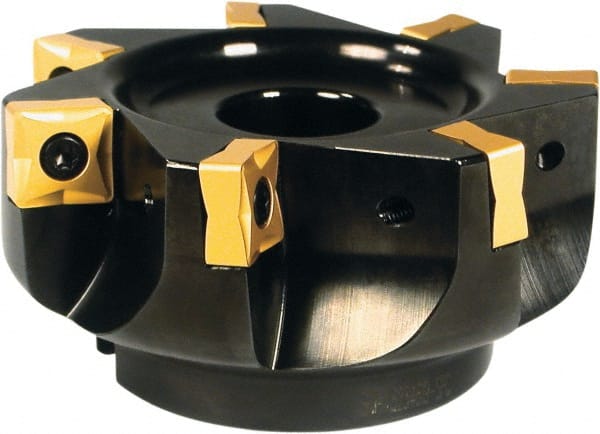

Sumitomo - 5 Inserts, 2-1/2" Cut Diam, 1" Arbor Diam, 0.575" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 2° Lead Angle, 1-3/4" High, SNMX 1204.. Insert Compatibility, Series SumiMill
Item #: 53965695
Brand: Sumitomo
Model #: U102030
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 2 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | SNMX 1204.. |
| Series | SumiMill |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.5750 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | SDP |
| Number of Flutes | 5 |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Minimum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | SNMX 120412DP |
