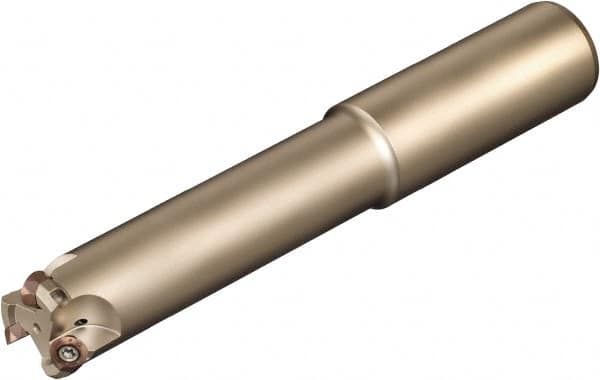

Sumitomo - 1-1/2" Cutting Diam, 1-1/2" Shank Diam, Straight Shank Indexable Copy End Mill - 4 Inserts, QPET, QPMT Insert, WRCX Toolholder, Through Coolant
Item #: 53965828
Brand: Sumitomo
Model #: 2200W62
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/2 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.1875 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Cutter Inserts | 4 |
| Insert Style | QPET; QPMT |
| Toolholder Style | WRCX |
| Series | WaveMill |
| Overall Length (Decimal Inch) | 10.0000 |
| Insert Diameter (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 3.7500 |
| Shank Length (Decimal Inch) | 6.2500 |
