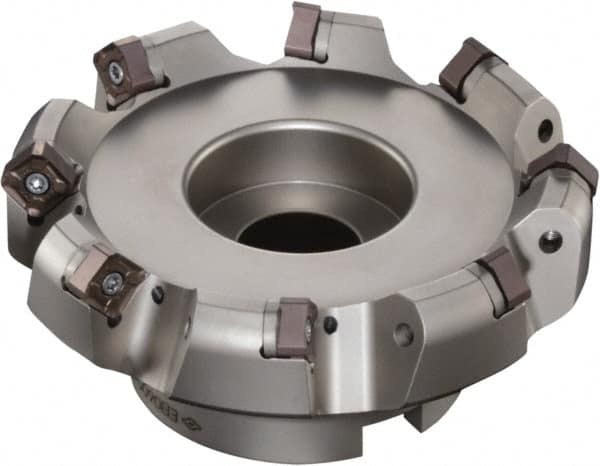

Sumitomo - 6" Cut Diam, 1-1/2" Arbor Hole, 6mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 14 Inserts, ONMT 05T6\xB6SNMT 13T6\xB6XNET 13T6 Insert, Right Hand Cut, Series DualMill
Item #: 53966255
Brand: Sumitomo
Model #: 2200W97
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 6.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.5000 |
| Insert Compatibility | ONMT 05T6; SNMT 13T6; XNET 13T6 |
| Series | DualMill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Number of Cutter Inserts | 14 |
| Insert Holding Method | Screw |
| Cutter Style | DGCF |
| Cutting Rake Angle | -10 (Radial); -5 (Axial) |
| Rake | Negative |
| Hub Diameter (Decimal Inch) | 4.3800 |
| Keyway Width (Decimal Inch) | 0.6250 |
| Maximum Body Diameter (Decimal Inch) | 6.5670 |
| Cutting Direction | Right Hand |
| Pitch | Extra Fine |
| Counterbore Diameter (Decimal Inch) | 2.0000 |
| Complete Insert Compatibility | ONMT 05T6ANER; SNMT 13T6ANER; XNET 13T6ANEN |
