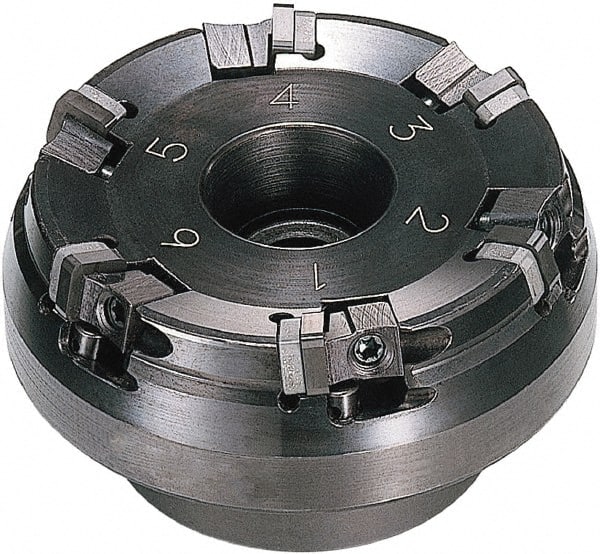

Sumitomo - 125mm Cut Diam, 38.1mm Arbor Hole, 75° Indexable Chamfer & Angle Face Mill - 10 Inserts, SNEN 0903..\xB6SNG 32. Insert, Right Hand Cut, Series Sumiboron
Item #: 53966792
Brand: Sumitomo
Model #: 2S00W03
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Cutting Diameter (Decimal Inch) | 4.9213 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 75 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | SNEN 0903..; SNG 32. |
| Series | Sumiboron |
| Through Coolant | No |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Clamp |
| Cutter Style | RM |
| Hub Diameter (Decimal Inch) | 3.1496 |
| Hub Diameter (mm) | 80.00 |
| Keyway Width (mm) | 15.90 |
| Keyway Width (Decimal Inch) | 0.6260 |
| Maximum Body Diameter (Decimal Inch) | 5.3150 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | SNEN 090308-W; SNG 322; SNG 323 |
