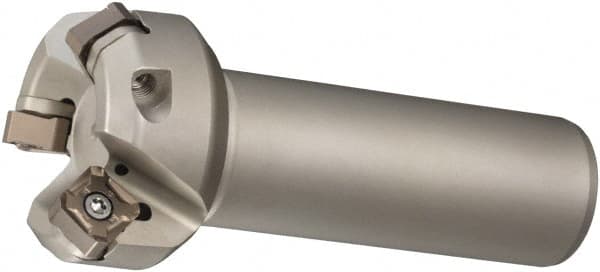

Sumitomo - 45° Lead Angle, 2.567" Max Cut Diam, 2" Min Cut Diam, Indexable Chamfer and Angle End Mill - 4 Inserts, ONMT, SNMT, XNET Insert Style, 3.97" Overall Length, Through Coolant, Straight Shank
Item #: 53966958
Brand: Sumitomo
Model #: 2900W50
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 2.5670 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 45 |
| Overall Length (Decimal Inch) | 3.9700 |
| Insert Style | ONMT; SNMT; XNET |
| Series | DualMill DGC |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 (ONMT); 0.2362 (SNMT) |
| Maximum Depth of Cut (mm) | 3.00 (ONMT); 6.00 (SNMT) |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Toolholder Style | DGC |
| Head Length (Decimal Inch) | 1.5910 |
| Weldon Flat | Yes |
| Axial Rake Angle | -5 |
| Radial Rake Angle | -10 |
| Shank Length (Decimal Inch) | 2.3790 |
