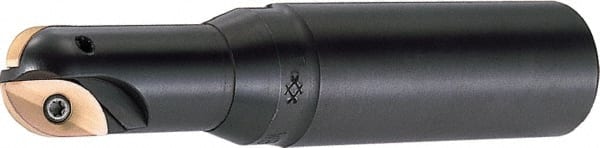

Sumitomo - 2" Cut Diam, 1.862" Max Depth of Cut, 2" Shank Diam, 6.029" OAL, Indexable Ball Nose End Mill - 2.785" Head Length, Straight Shank, WBMR Toolholder, ZNMT8CX, ZNMT8SX Insert
Item #: 53967212
Brand: Sumitomo
Model #: 2900W1P
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 1.8620 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | ZNMT8CX; ZNMT8SX |
| Toolholder Style | WBMR |
| Series | WaveMill |
| Overall Length (Decimal Inch) | 6.0290 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | Yes |
| Tapered Neck | Yes |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 2.7850 |
