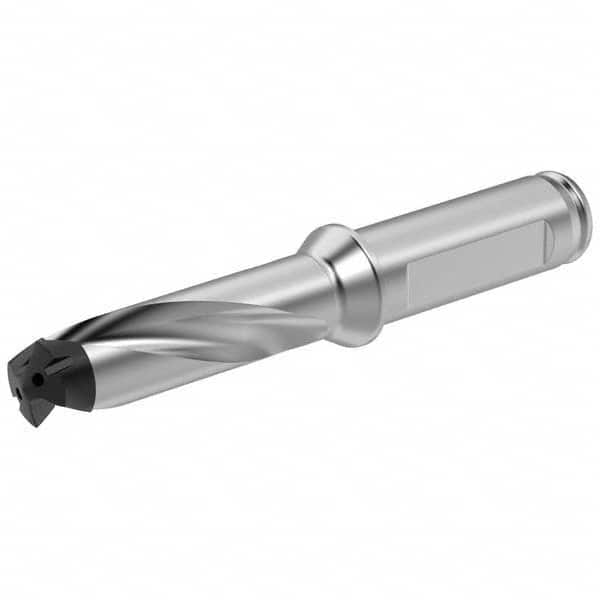

Kennametal - Series KenTIP FS, 3xD, 5/8" Diam Straight Shank, Drill Body
Item #: 95914438
Brand: Kennametal
Model #: 6688276
| Product Specifications | |
|---|---|
| Series | KenTIP FS |
| Head Connection Size | L |
| Drill Depth by Diameter Ratio | 3xD |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 5/8 |
| Drill Body Length to Flange (mm) | 52.60 |
| Toolholder Style | KTFS |
| Nose Diameter (mm) | 11.00 |
| Overall Length (mm) | 107.00 |
| Gage Length (mm) | 59.00 |
| Flute Length (mm) | 36.20 |
| Shank Type | Straight |
| Shank Length (mm) | 48.00 |
| Through Coolant | Yes |
