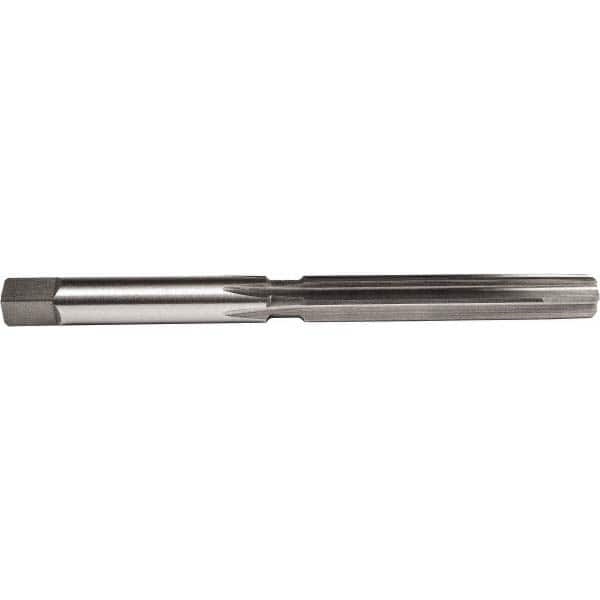

Union Butterfield - 3/16" Diam, Straight Shank, 1-3/4" Flute, Hand Reamer
Item #: 65711285
Brand: Union Butterfield
Model #: 5010930
Features and Benefits
Standard reamers are constructed with a fixed diameter. They are used only for holes that have a diameter equal to the reamer.
Straight flute reamers are the most common and are used in general purpose though-hole applications. They are used for reaming holes without interrupted cuts.
| Product Specifications | |
|---|---|
| Reamer Diameter (Decimal Inch) | 0.1875 |
| Reamer Diameter (Inch) | 3/16 |
| Shank Type | Straight |
| Variable Diameter Reamer Type | None |
| Flute Type | Straight |
| Flute Length (Inch) | 1-3/4 |
| Overall Length (Inch) | 3-1/2 |
| Overall Length (Decimal Inch) | 3.50 |
| Number of Flutes | 6 |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
| PSC Code | 5133 |
