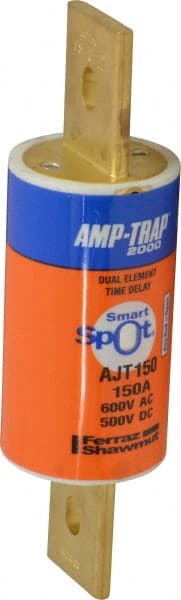

Ferraz Shawmut - 500 VDC, 600 VAC, 150 Amp, Time Delay General Purpose Fuse - Clip Mount, 5-3/4" OAL, 100 at DC, 200 at AC, 300 (Self-Certified) kA Rating, 1-5/8" Diam
Item #: 54004791
Brand: Ferraz Shawmut
Model #: AJT150
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Time delay fuses, also known as duel-element fuses, are designed to allow for a surge in electricity during a short time before overloading or shorting out. They can protect equipment from overload and allow for greater starting amperage.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | J |
| Amperage | 150 |
| Voltage | 500 VDC; 600 VAC |
| Fuse Timing | Time Delay |
| Fuse Body Type | Cylindrical |
| Overall Length (mm) | 146.10 |
| Overall Length (Inch) | 5-3/4 |
| Overall Length (Decimal Inch) | 5.7500 |
| Overall Diameter (mm) | 41.30 |
| Overall Diameter (Inch) | 1-5/8 |
| Overall Diameter (Decimal Inch) | 1.6300 |
| Material | Fiberglass; GMG |
| Mounting Type | Clip |
| Indicating Information | Indicating |
| Rejection Setting | Rejecting |
| Interrupting Rating (kA) | 100 @ DC; 200 @ AC; 300 (Self-Certified) |
| Standards Met | CE Certified; CSA C22.2 No. 248.8 Certified; IEC 269-2-1; RoHS Compliant; UL 248; UL Listed 248-8 File E2137 |
