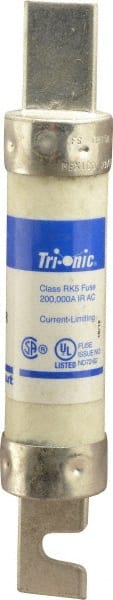

Ferraz Shawmut - 250 VAC/VDC, 75 Amp, Time Delay General Purpose Fuse - Clip Mount, 5-7/8" OAL, 20 at DC, 200 at AC kA Rating, 1-1/16" Diam
Item #: 54005939
Brand: Ferraz Shawmut
Model #: TR75R
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Time delay fuses, also known as duel-element fuses, are designed to allow for a surge in electricity during a short time before overloading or shorting out. They can protect equipment from overload and allow for greater starting amperage.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | RK5 |
| Amperage | 75 |
| Voltage | 250 VAC/VDC |
| Fuse Timing | Time Delay |
| Fuse Body Type | Cylindrical |
| Overall Length (mm) | 149.20 |
| Overall Length (Inch) | 5-7/8 |
| Overall Length (Decimal Inch) | 5.8800 |
| Overall Diameter (mm) | 27.30 |
| Overall Diameter (Inch) | 1-1/16 |
| Overall Diameter (Decimal Inch) | 1.0800 |
| Material | Fiberglass; Polyester |
| Mounting Type | Clip |
| Rejection Setting | Rejecting |
| Interrupting Rating (kA) | 20 @ DC; 200 @ AC |
| Standards Met | CE Certified; CSA C22.2 No. 248.12 Certified; RoHS Compliant; UL Listed 248-12 File E2137 |
