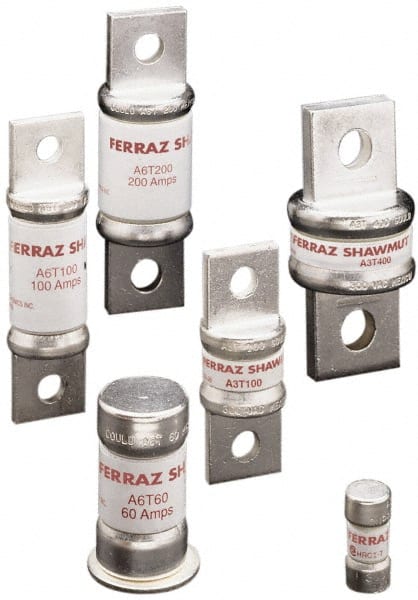

Ferraz Shawmut - 160 VDC, 300 VAC, 80 Amp, Fast-Acting General Purpose Fuse - Bolt-on Mount, 2-5/32" OAL, 200 at AC, 50 at DC kA Rating, 13/16" Diam
Item #: 54007141
Brand: Ferraz Shawmut
Model #: A3T80
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | T |
| Amperage | 80 |
| Voltage | 160 VDC; 300 VAC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cylindrical |
| Overall Length (mm) | 54.90 |
| Overall Length (Inch) | 2-5/32 |
| Overall Length (Decimal Inch) | 2.1600 |
| Overall Diameter (mm) | 20.60 |
| Overall Diameter (Inch) | 13/16 |
| Overall Diameter (Decimal Inch) | 0.8100 |
| Material | GMG |
| Mounting Type | Bolt-on |
| Rejection Setting | Rejecting |
| Interrupting Rating (kA) | 200 @ AC; 50 @ DC |
| Standards Met | CSA C22.2 No. 248.15 Certified; UL 248; UL Listed 248-15 File E2137 |
