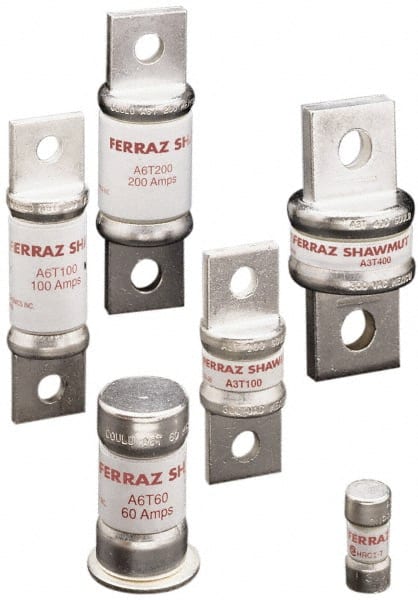

Ferraz Shawmut - 300 VDC, 600 VAC, 400 Amp, Fast-Acting General Purpose Fuse - Bolt-on Mount, 3-5/8" OAL, 100 at DC, 200 at AC kA Rating, 1-5/8" Diam
Item #: 54007604
Brand: Ferraz Shawmut
Model #: A6T400
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | T |
| Amperage | 400 |
| Voltage | 300 VDC; 600 VAC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cylindrical |
| Overall Length (mm) | 92.10 |
| Overall Length (Inch) | 3-5/8 |
| Overall Length (Decimal Inch) | 3.6200 |
| Overall Diameter (mm) | 41.30 |
| Overall Diameter (Inch) | 1-5/8 |
| Overall Diameter (Decimal Inch) | 1.6200 |
| Material | GMG |
| Mounting Type | Bolt-on |
| Rejection Setting | Rejecting |
| Interrupting Rating (kA) | 100 @ DC; 200 @ AC |
| Standards Met | CSA C22.2 No. 248.15 Certified; UL 248; UL Listed 248-15 File E2137 |
