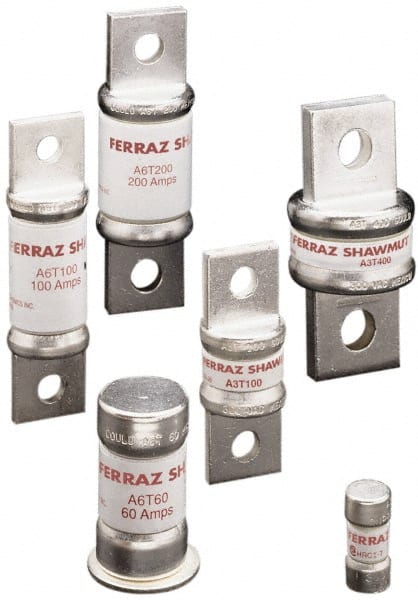

Ferraz Shawmut - 300 VDC, 600 VAC, 700 Amp, Fast-Acting General Purpose Fuse - Bolt-on Mount, 4-21/64" OAL, 100 at DC, 200 at AC kA Rating, 2-1/2" Diam
Item #: 54007646
Brand: Ferraz Shawmut
Model #: A6T700
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | T |
| Amperage | 700 |
| Voltage | 300 VDC; 600 VAC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cylindrical |
| Overall Length (mm) | 110 |
| Overall Length (Inch) | 4-21/64 |
| Overall Length (Decimal Inch) | 4.3300 |
| Overall Diameter (mm) | 63.50 |
| Overall Diameter (Inch) | 2-1/2 |
| Overall Diameter (Decimal Inch) | 2-1/2 |
| Material | GMG |
| Mounting Type | Bolt-on |
| Rejection Setting | Rejecting |
| Interrupting Rating (kA) | 100 @ DC; 200 @ AC |
| Standards Met | CSA C22.2 No. 248.15 Certified; UL 248; UL Listed 248-15 File E2137 |
