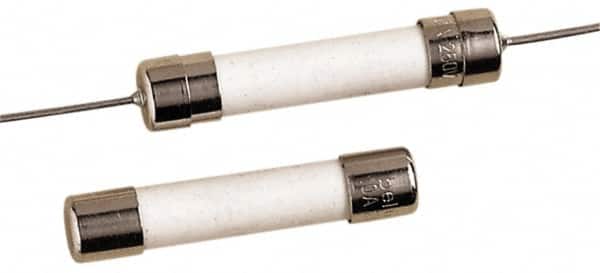

Ferraz Shawmut - 250 VAC, 1.6 Amp, Time Delay Miniature Ceramic Fuse - Clip Mount, 1-1/4" OAL, 1/4" Diam
Item #: 54009436
Brand: Ferraz Shawmut
Model #: GSA1-6/10-MSC
Exact Tooling IR#: 04
Features and Benefits
Miniature ceramic fuses are constructed of a conductive metal placed on a small ceramic body. They are more durable than glass bodies and are commonly used in appliances and electronics.
Time delay fuses, also known as duel-element fuses, are designed to allow for a surge in electricity during a short time before overloading or shorting out. They can protect equipment from overload and allow for greater starting amperage.
| Product Specifications | |
|---|---|
| Fuse Type | Miniature Ceramic |
| Amperage | 1.60 |
| Voltage | 250 VAC |
| Fuse Timing | Time Delay |
| Fuse Body Type | Cylindrical |
| Overall Length (mm) | 32 |
| Overall Length (Inch) | 1-1/4 |
| Overall Diameter (mm) | 6.00 |
| Overall Diameter (Inch) | 1/4 |
| Material | Ceramic |
| Mounting Type | Clip |
| Rejection Setting | NonRejecting |
| Interrupting Rating (A) | 100 @ AC |
| Standards Met | CSA Certified; UL Listed; UL Recognized |
