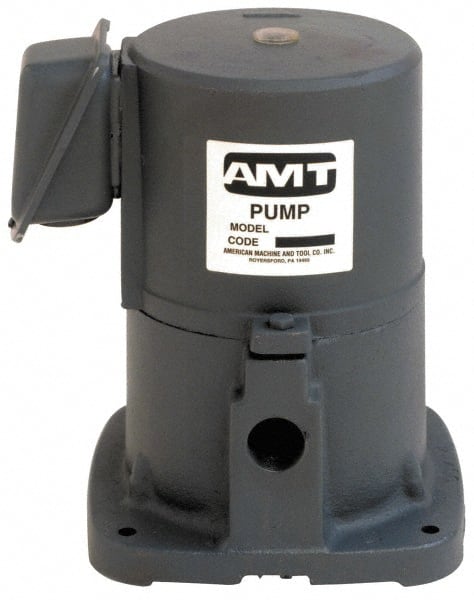

American Machine & Tool - 1.8/1.25 Amp, 230/460 Volt, 1/2 hp, 3 Phase, 3,450 RPM, Cast Iron Suction Machine Tool & Recirculating Pump

Item #: 54010970
Brand: American Machine & Tool
Model #: 5360-999-95

Product Specifications

Pump Type Suction

Horsepower 1/2

Phase 3

Voltage $nofrac$230/460/$nofrac$

GPM 33.00

Housing Material Cast Iron

Head Pressure 18.0

Thread Type NPT

Inlet Size 3/4

Overall Height (Decimal Inch) 10.3800

Amperage Rating $nofrac$1.80/1.25/$nofrac$

Mounting Flange Length 7-3/4

Mounting Flange Width 7-3/4

Motor Type TEFC

RPM 3450.000

Impeller Material Stainless Steel

Pump Type	Suction
Horsepower	1/2
Phase	3
Voltage	$nofrac$230/460/$nofrac$
GPM	33.00
Housing Material	Cast Iron
Head Pressure	18.0
Thread Type	NPT
Inlet Size	3/4
Overall Height (Decimal Inch)	10.3800
Amperage Rating	$nofrac$1.80/1.25/$nofrac$
Mounting Flange Length	7-3/4
Mounting Flange Width	7-3/4
Motor Type	TEFC
RPM	3450.000
Impeller Material	Stainless Steel
