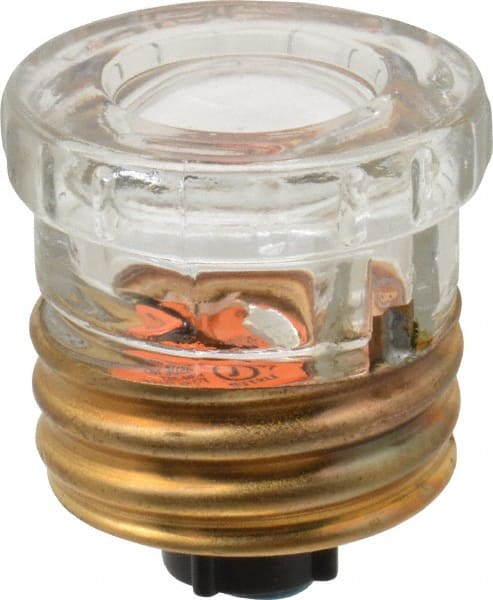

Ferraz Shawmut - 125 VAC, 20 Amp, Time Delay Plug Fuse - Screw Mount Mount, 1.29" OAL, 10 at AC kA Rating, 1-1/8" Diam
Item #: 54014584
Brand: Ferraz Shawmut
Model #: GTL20-MSC
Exact Tooling IR#: 04
Features and Benefits
Plug fuses, also known as edison fuses, are designed with a thread to screw into a socket and are often found in a box cover units or panels. They are commonly used in residential, industrial applications as well as for motor protection.
Time delay fuses, also known as duel-element fuses, are designed to allow for a surge in electricity during a short time before overloading or shorting out. They can protect equipment from overload and allow for greater starting amperage.
| Product Specifications | |
|---|---|
| Fuse Type | Plug Fuse |
| Amperage | 20 |
| Voltage | 125 VAC |
| Fuse Timing | Time Delay |
| Fuse Body Type | Plug |
| Overall Length (Decimal Inch) | 1.2900 |
| Overall Diameter (Decimal Inch) | 1.1260 |
| Material | Glass |
| Mounting Type | Screw Mount |
| Interrupting Rating (kA) | 10 @ AC |
| Standards Met | CSA Class 1423-01 File 15525 Certified; UL Listed Guide JEFV File E76208 |
