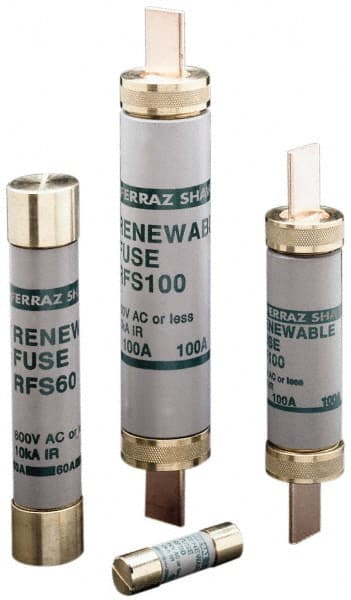

Ferraz Shawmut - 600 VAC, 90 Amp, Fast-Acting Renewable Fuse - Fuse Holder Mount, 7-7/8" OAL, 10 at AC kA Rating, 1-5/16" Diam
Item #: 54017694
Brand: Ferraz Shawmut
Model #: RLS90
Exact Tooling IR#: 04
Features and Benefits
Renewable fuses have replaceable fuse elements, allowing the fuse body to be reused if not damaged after an overload or short circuit. They are made to Class H standards. Renewable fuses and links are not recommended for new applications.
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | Renewable |
| Fuse Class | H |
| Amperage | 90 |
| Voltage | 600 VAC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cylindrical |
| Overall Length (mm) | 200 |
| Overall Length (Inch) | 7-7/8 |
| Overall Length (Decimal Inch) | 7.88 |
| Overall Diameter (mm) | 34.00 |
| Overall Diameter (Inch) | 1-5/16 |
| Overall Diameter (Decimal Inch) | 1-5/16 |
| Mounting Type | Fuse Holder |
| Reusability | Renewable |
| Interrupting Rating (kA) | 10 @ AC |
| Standards Met | CSA C22.2 No. 248.7 Certified; UL Listed 248-7 File E2137 |
