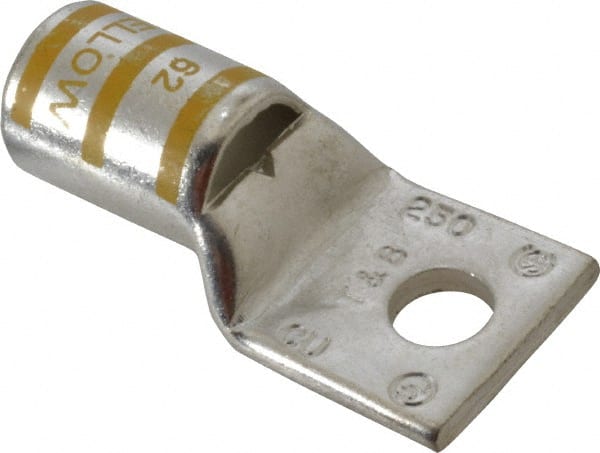

Thomas & Betts - 250 kcmil Wire Noninsulated Compression Connection Square Ring Terminal - 3/8" Stud, 2.28" OAL x 1.13" Wide, Tin Plated Copper Contact
Item #: 54056882
Brand: Thomas & Betts
Model #: 54174
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Terminal Type | Square |
| Insulation Type | NonInsulated |
| Connection Type | Compression |
| Compatible Wire Size (kcmil) | 250 |
| Stud Size (Inch) | 3/8 |
| Color | Yellow |
| Contact Material | Copper |
| Thickness (Decimal Inch) | 0.1400 |
| Ring Width (Decimal Inch) | 1.1300 |
| Overall Length (Decimal Inch) | 2.2800 |
| Contact Plating | Tin |
| Standards Met | CSA Certified; RoHS Compliant; UL Listed |
| Panduit Part Number | LCA250-38-X |
