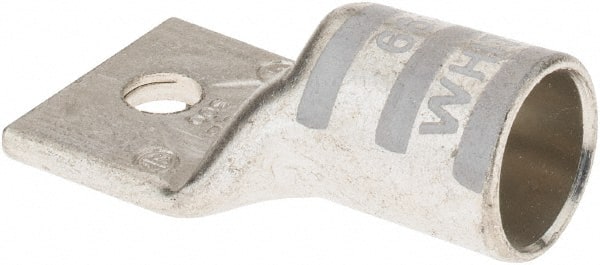

Thomas & Betts - 300 kcmil Wire Noninsulated Compression Connection Square Ring Terminal - 5/16" Stud, 2.33" OAL x 1-1/4" Wide, Tin Plated Copper Contact
Item #: 54056908
Brand: Thomas & Betts
Model #: 54178
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Terminal Type | Square |
| Insulation Type | NonInsulated |
| Connection Type | Compression |
| Compatible Wire Size (kcmil) | 300 |
| Stud Size (Inch) | 5/16 |
| Color | White |
| Contact Material | Copper |
| Thickness (Decimal Inch) | 0.1500 |
| Ring Width (Decimal Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 2.3300 |
| Contact Plating | Tin |
| Standards Met | RoHS Compliant |
| Panduit Part Number | LCA300-56-X |
