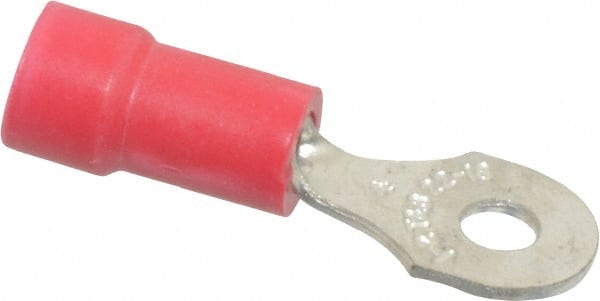

Thomas & Betts - 22-16 AWG Partially Insulated Crimp Connection D Shaped Ring Terminal - #4 Stud, 0.97" OAL x 0.31" Wide, Tin Plated Copper Contact
Item #: 54063755
Brand: Thomas & Betts
Model #: 18RA-4
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Terminal Type | D Shaped |
| Insulation Type | Partially Insulated |
| Connection Type | Crimp |
| Compatible Wire Size (AWG) | 22-16 |
| Stud Size (#) | 4 |
| Color | Red |
| Contact Material | Copper |
| Insulation Material | VINYL |
| Ring Width (Decimal Inch) | 0.3100 |
| Overall Length (Decimal Inch) | 0.9700 |
| Contact Plating | Tin |
| Standards Met | CSA 22.2; CSA Certified; RoHS Compliant; UL 486A; UL 486B; UL 94 V-0; UL File E9809; UL Listed |
