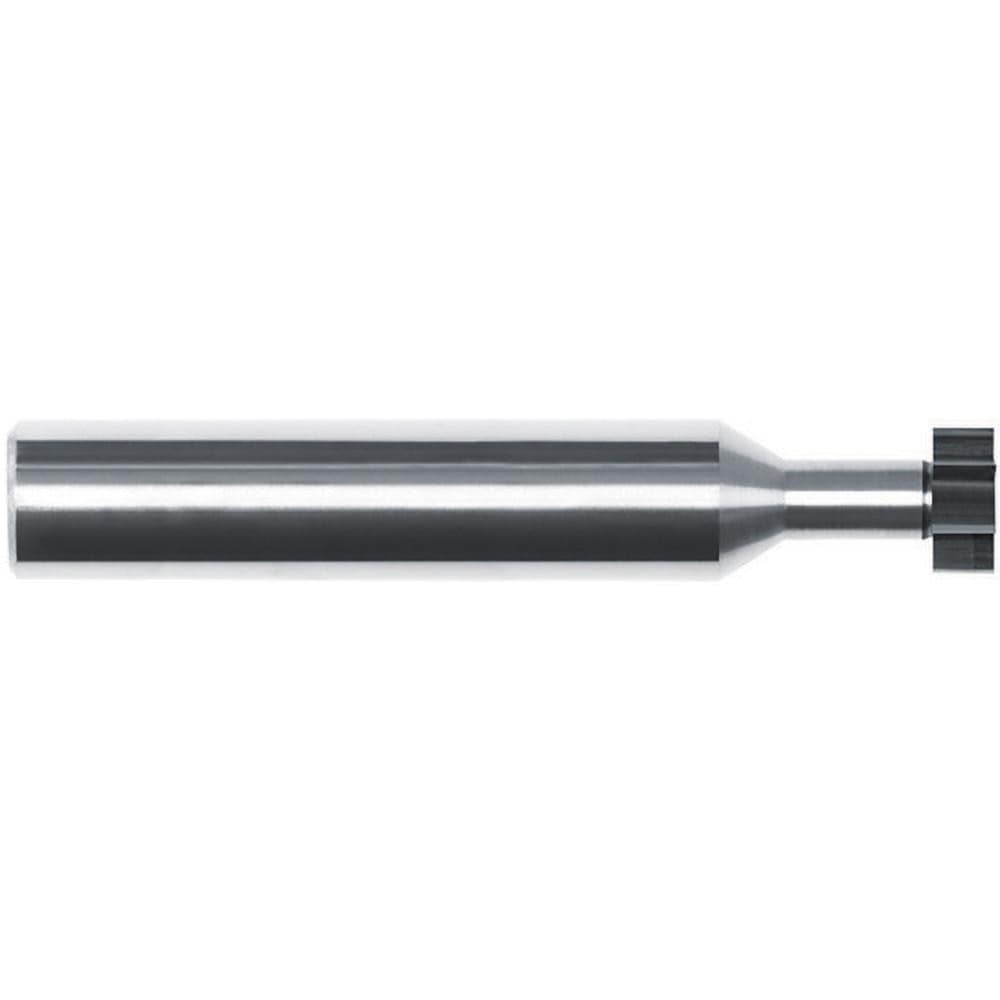

Woodruff Keyseat Cutter: 5/8" Cut Dia, 1/16" Cut Width, 5/8" Shank Dia, Straight Tooth
Item #: 87919031
Brand: Internal Tool
Model #: 76-1280-C
Product Specifications
| Connection Type | Shank |
| Cutter Material | Solid Carbide |
| Cutter Diameter (Inch) | 5/8 |
| Cutter Diameter (Decimal Inch) | 0.6250 |
| Tooth Configuration | Straight |
| Cutting Width (Inch) | 1/16 |
| Cutting Width (Decimal Inch) | 0.0625 |
| Weldon Flat | No |
| Neck Diameter (Decimal Inch) | 0.3000 |
| Neck Length (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (Inch) | 3-1/2 |
| Overall Length (Decimal Inch) | 3.5000 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Cutter Material Grade | Micrograin |
| Series | 76 |
| Coating/Finish | AlTiN |
| Number Of Teeth | 10 |
| UNSPSC Code | 23241631 |
| Country of Origin | UNITED STATES |
