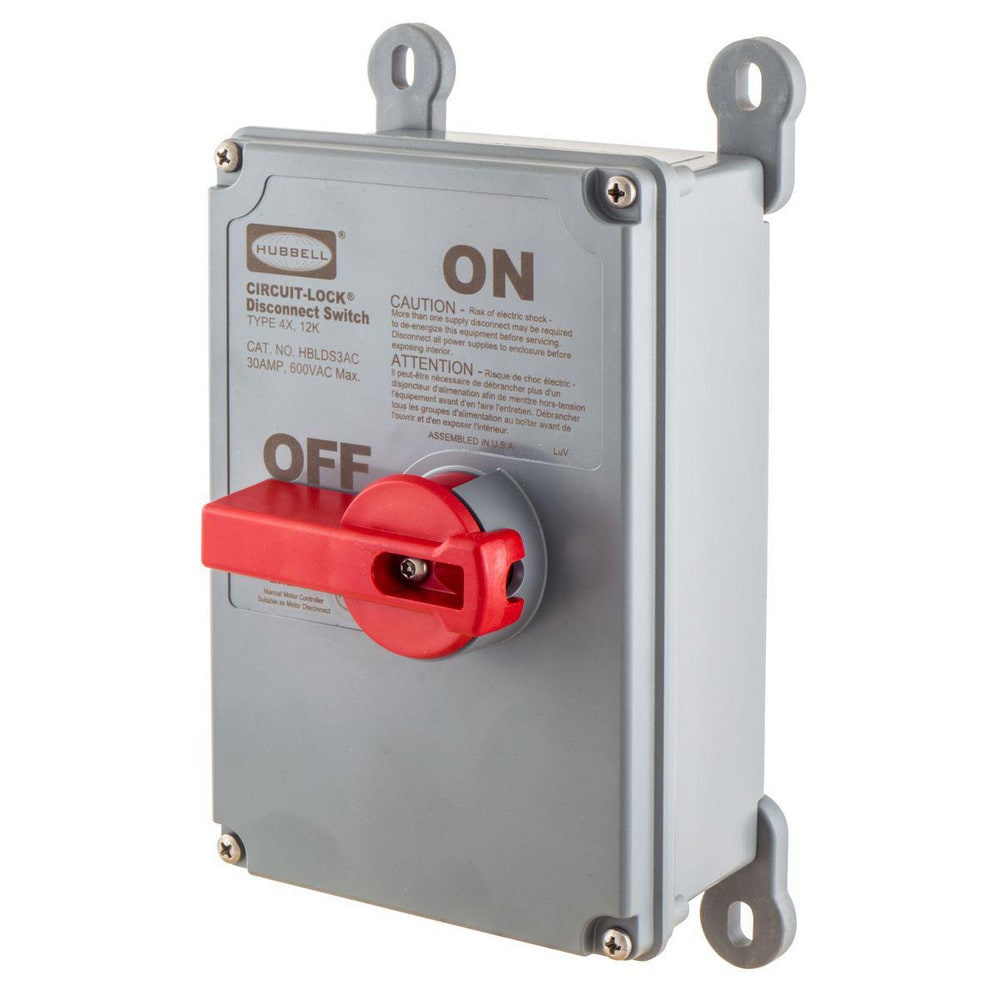

Switches and Lighting Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Three Pole, 30A 600V AC, Screw Terminals, Gray, NEMA4XEnclosure, With Aux Contact
Item #: 06937502
Brand: Hubbell Wiring Device-Kellems
Model #: HBLDS3ACNK
Product Specifications
| Enclosure Type | Enclosed |
| Fused | Non-Fused |
| Amperage | 30 mA |
| Voltage | 600V AC |
| Horsepower at 1 Phase | 1 @ 120 VAC |
| Horsepower at 3 Phase | 7.5 @ 240 VAC/15 @ 480 VAC/15 @ 600 VAC |
| Number Of Poles | 3 |
| Overall Height (Decimal Inch) | 4.1200 |
| Overall Width (Decimal Inch - 4 Decimals) | 6 |
| Overall Depth (Decimal Inch) | 8.5 |
| Number Of Wires | 1 |
| Ingress Protection Rating | IP69K |
| Standards | NSF Certified; cULus Listed |
| Nema Rating | 4X; IP69K; 12K |
| Number Of Phases | 1 |
| UNSPSC Code | 39122205 |
