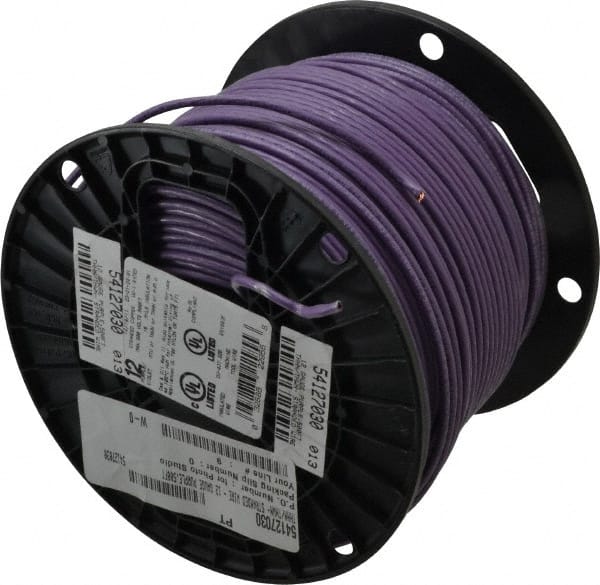

Southwire - THHN/THWN, 12 AWG, 20 Amp, 500' Long, Stranded Core, 19 Strand Building Wire - Purple, Thermoplastic Insulation
Item #: 54127030
Brand: Southwire
Model #: 23212401
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Conductor Type | THHN/THWN |
| Core Type | Stranded |
| Wire Size (AWG) | 12 |
| Amperage | 20 |
| Jacket Material | Nylon |
| Jacket Color | Purple |
| Overall Length (Feet) | 500 |
| Number of Conductors | 1 |
| Resistance Features | Abrasion Resistant; Gasoline Resistant; Heat Resistant; Moisture Resistant; Oil Resistant |
| Number of Strands | 19 |
| Insulation Material | Thermoplastic |
| Maximum Operating Temperature (F) | 140; 167; 194 |
| Standards Met | ASTM Specifications; CSA; Federal Specification A-A-59544; Green Specification; RoHS Compliant; UL 1063 (MTW); UL 83; UL Listed |
| Wire Material | Copper |
| Voltage | 600 V |
| PSC Code | 6145 |
