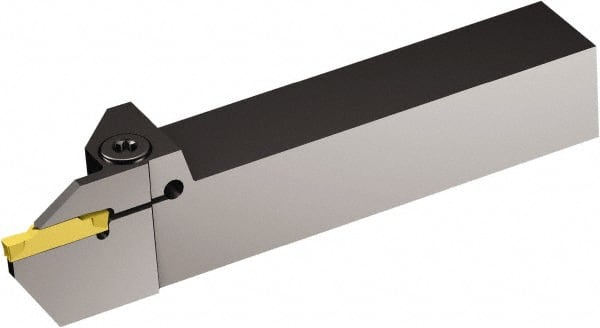

Sandvik Coromant - 12.95mm Max Depth, 3.96mm to 5mm Width, External Right Hand Indexable Grooving/Cutoff Toolholder
Item #: 54159132
Brand: Sandvik Coromant
Model #: 5740765
Product Specifications
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 12.95 |
| Maximum Depth of Cut (Decimal Inch) | 0.5100 |
| Minimum Groove Width (Decimal Inch) | 0.1559 |
| Minimum Groove Width (mm) | 3.96 |
| Maximum Groove Width (mm) | 5.00 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (mm) | 152.40 |
| Series | CoroCut? 1-2 |
| Toolholder Style | RF123..B |
| Insert Compatibility | N123H2-0400-CM |
| Shank Height (mm) | 31.75 |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (mm) | 31.75 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Head Height (mm) | 31.75 |
| Head Height (Decimal Inch) | 1.2500 |
| Head Length (mm) | 31.75 |
| Head Length (Decimal Inch) | 1.2500 |
| Shank Length (Decimal Inch) | 4.6620 |
| Shank Length (mm) | 118.41 |
| Manufacturers Catalog Number | RF123H051-20BM |
