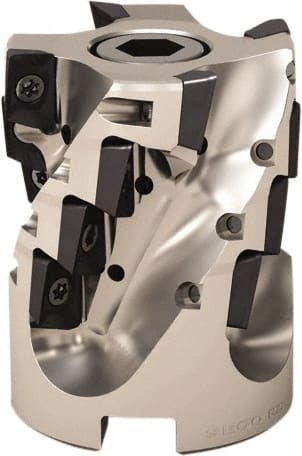

Seco - 25 Inserts, 2" Cut Diam, 1" Arbor Diam, 2.16" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 3-1/4" High, XO.. 1204 Insert Compatibility, Through Coolant, Series Super Turbo
Item #: 54170683
Brand: Seco
Model #: 58596
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (Decimal Inch) | 3.2500 |
| Insert Compatibility | XO.. 1204 |
| Series | Super Turbo |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 2.1600 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 25 |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Keyway Width (Decimal Inch) | 0.3800 |
| Maximum RPM | 14800 |
| Complete Insert Compatibility | XOEX 120402R-M07; XOEX 120404FR-E06; XOEX 120404R-M07; XOEX 120408FR-E06; XOEX 120408R-M07; XOEX 120408ZZR-M07; XOEX 120416FR-E06; XOEX 120416R-M07; XOEX 120420FR-E06; XOEX 120424R-M07; XOEX 120431FR-E06; XOEX 120431R-M07; XOEX 120440R-M07; XOEX 120450R-M |
