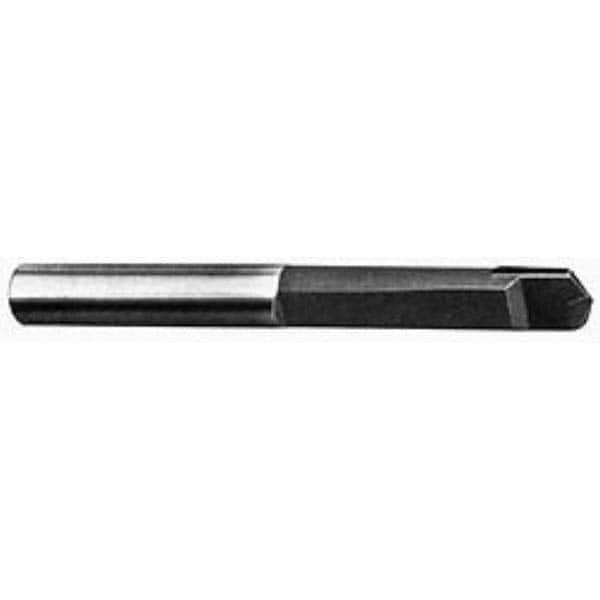

APT - 7/16", 120° Point, Carbide-Tipped Straight Flute Drill Bit
Item #: 72454283
Brand: APT
Model #: CT860 7/16
Features and Benefits
Straight flute drills are used for drilling holes in hardened and high strength steels over 50 HRC. The straight flute allows for deep hole drilling.
Carbide tips cut faster than high speed steel. It provides good heat and wear resistance.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Drill Bit Type | Straight-Flute Drill Bit |
| Drill Point Angle | 120 |
| Drill Bit Size (Inch) | 7/16 |
| Drill Bit Size (Decimal) | 0.4375 |
| Drill Bit Material | Carbide-Tipped |
| Drill Bit Finish/Coating | Bright |
| Overall Length (Inch) | 4-1/2 |
| Through Coolant | No |
| Flute Length (Inch) | 2-1/4 |
| Shank Diameter (Inch) | 7/16 |
| Number of Flutes | 2 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Series/List | CT860 |
