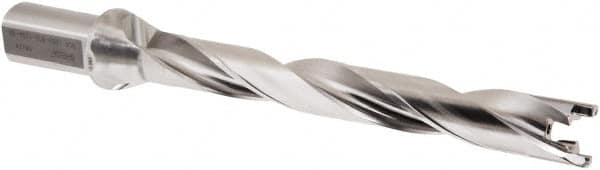

Iscar - 1-1/16 to 1.098" Diam, 8xD, 8.69" Max Drill Depth, 1-1/4" Shank Diam, 12.54" OAL, Replaceable Tip Drill - FCP, HCP-IQ, ICK, ICM, ICP Insert, 27 Seat Size, DCN Toolholder, Series SumoCham
Item #: 54227863
Brand: Iscar
Model #: 3203130
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 1.0630 |
| Maximum Drill Diameter (Decimal Inch) | 1.0980 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 8.6900 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | FCP; HCP-IQ; ICK; ICM; ICP |
| Insert Seat Size | 27 |
| Toolholder Style | DCN |
| Shank Type | Flat Shank |
| Tip Length (Decimal Inch) | 0.1930 |
| Flute Length (Decimal Inch) | 8.6900 |
| Body Length (Decimal Inch) | 10.1800 |
| Overall Length (Decimal Inch) | 12.5400 |
| Shank Length (Decimal Inch) | 2.3600 |
