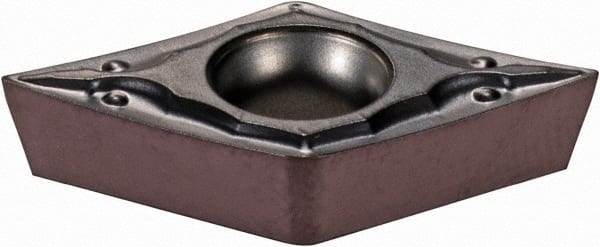

Iscar - DCMT3-0 PF Grade IC806 Carbide Turning Insert - TiAlN Finish, 55° Diamond, 3/8" Inscr Circle, 5/32" Thick, 0.008" Corner Radius
Item #: 54242078
Brand: Iscar
Model #: 5566758
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCMT |
| Insert Size | 3-0 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | IC806 |
| Coating | TiAlN |
| Material Grade | Submicron |
| Chip Breaker | PF |
| Insert Length (Decimal Inch) | 0.4570 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | DCMT 3-0-PF |
| Relief Angle | 7 |
| Proprietary Coating Designation | SumoTec |
| Coating Process | PVD |
| Included Angle | 55 |
| Series | Isoturn |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Insert Holding Method | Screw |
| FullRadius | No |
| Shape | Diamond |
