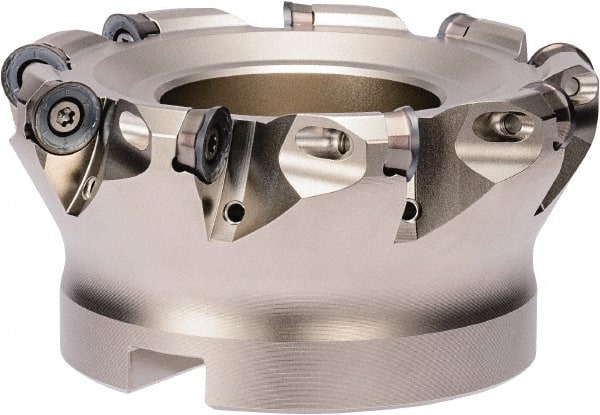

Kyocera - 3" Cut Diam, 0.315" Max Depth, 0.382" Arbor Hole, 6 Inserts, RPGT 16, RPMT 16 Insert Style, Indexable Copy Face Mill - MRX Cutter Style, 11,500 Max RPM, 1.969" High, Through Coolant, Series RAD-6
Item #: 54291943
Brand: Kyocera
Model #: 8839319
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Arbor Hole Diameter (Decimal Inch) | 0.3820 |
| Overall Height (Decimal Inch) | 1.9690 |
| Series | RAD-6 |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | RPGT 16; RPMT 16 |
| Cutter Style | MRX |
| Through Coolant | Yes |
| Maximum RPM | 11500 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 2.2500 |
| Insert Inscribed Circle (mm) | 16.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.6300 |
| Cutting Direction | Right Hand |
| Counterbore Diameter (Decimal Inch) | 0.8660 |
| Complete Insert Compatibility | RPGT 1605M0ER-GM; RPGT 1605M0ER-SM; RPMT 1605M0EN-GH; RPMT 1605M0ER-GM |
| ISO Number | MRX3000R-16-6T |
