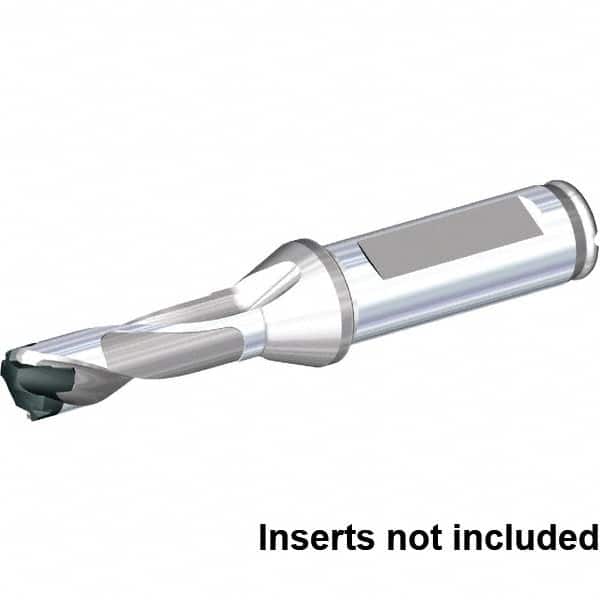

Kennametal - Series KenTIP, Head Connection G, 5xD, 1/2" Shank Diam, Drill Body - 63.5mm Drill Body Length to Flange, KTIP Toolholder, 8.61mm Nose Diam, 108.5mm OAL, 63.5mm Drill Body Length, 58mm Flute Length, Through Coolant
Item #: 54415377
Brand: Kennametal
Model #: 5307701
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Head Connection Size | G |
| Drill Depth by Diameter Ratio | 5xD |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Drill Body Length to Flange (mm) | 63.50 |
| Drill Body Length to Flange (Decimal Inch) | 2.5000 |
| Toolholder Style | KTIP |
| Nose Diameter (mm) | 8.61 |
| Nose Diameter (Decimal Inch) | 0.3390 |
| Overall Length (mm) | 108.50 |
| Overall Length (Decimal Inch) | 4.2717 |
| Gage Length (mm) | 63.50 |
| Gage Length (Decimal Inch) | 2.5000 |
| Flute Length (mm) | 58.00 |
| Flute Length (Decimal Inch) | 2.2835 |
| Shank Length (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.7717 |
| Through Coolant | Through Coolant |
| Number of Shank Flats | 1 |
