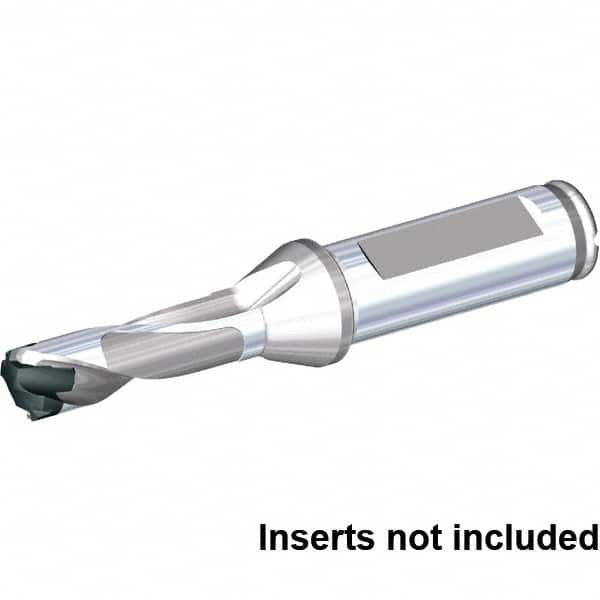

Kennametal - Series KenTIP, Head Connection F, 8xD, 1/2" Shank Diam, Drill Body - 85.73mm Drill Body Length to Flange, KTIP Toolholder, 7.94mm Nose Diam, 130.73mm OAL, 85.73mm Drill Body Length, 80.23mm Flute Length, Through Coolant
Item #: 54415385
Brand: Kennametal
Model #: 5307849
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Head Connection Size | F |
| Drill Depth by Diameter Ratio | 8xD |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Drill Body Length to Flange (mm) | 85.73 |
| Drill Body Length to Flange (Decimal Inch) | 3.3750 |
| Toolholder Style | KTIP |
| Nose Diameter (mm) | 7.94 |
| Nose Diameter (Decimal Inch) | 0.3125 |
| Overall Length (mm) | 130.73 |
| Overall Length (Decimal Inch) | 5.1467 |
| Gage Length (mm) | 85.73 |
| Gage Length (Decimal Inch) | 3.3750 |
| Flute Length (mm) | 80.23 |
| Flute Length (Decimal Inch) | 3.1585 |
| Shank Length (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.7717 |
| Through Coolant | Through Coolant |
| Number of Shank Flats | 1 |
