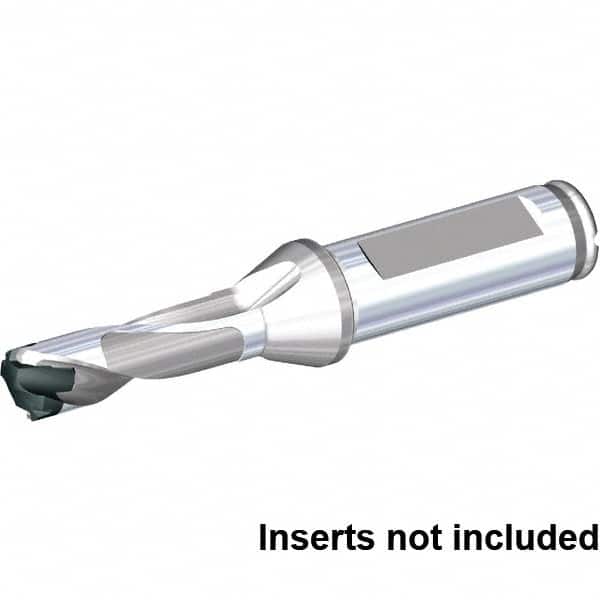

Kennametal - Series KenTIP, Head Connection ZA, 5xD, 1" Shank Diam, Drill Body - 152.4mm Drill Body Length to Flange, KTIP Toolholder, 22.23mm Nose Diam, 208.4mm OAL, 152.4mm Drill Body Length, 146.9mm Flute Length, Through Coolant
Item #: 54415500
Brand: Kennametal
Model #: 5307843
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Head Connection Size | ZA |
| Drill Depth by Diameter Ratio | 5xD |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Drill Body Length to Flange (mm) | 152.40 |
| Drill Body Length to Flange (Decimal Inch) | 6.0000 |
| Toolholder Style | KTIP |
| Nose Diameter (mm) | 22.23 |
| Nose Diameter (Decimal Inch) | 0.8750 |
| Overall Length (mm) | 208.40 |
| Overall Length (Decimal Inch) | 8.2047 |
| Gage Length (mm) | 152.40 |
| Gage Length (Decimal Inch) | 6.0000 |
| Flute Length (mm) | 146.90 |
| Flute Length (Decimal Inch) | 5.7835 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Through Coolant | Through Coolant |
| Number of Shank Flats | 1 |
