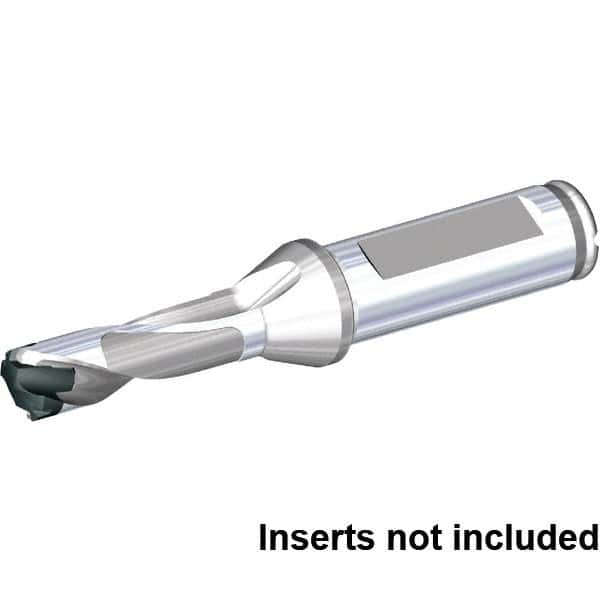

Kennametal - Series KenTIP, Head Connection Z, 5xD, 1" Shank Diam, Drill Body - 146.05mm Drill Body Length to Flange, KTIP Toolholder, 21.44mm Nose Diam, 202.05mm OAL, 146.05mm Drill Body Length, 140.55mm Flute Length, Through Coolant
Item #: 54415526
Brand: Kennametal
Model #: 5307842
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Head Connection Size | Z |
| Drill Depth by Diameter Ratio | 5xD |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Drill Body Length to Flange (mm) | 146.05 |
| Drill Body Length to Flange (Decimal Inch) | 5.7500 |
| Toolholder Style | KTIP |
| Nose Diameter (mm) | 21.44 |
| Nose Diameter (Decimal Inch) | 0.8440 |
| Overall Length (mm) | 202.05 |
| Overall Length (Decimal Inch) | 7.9547 |
| Gage Length (mm) | 146.05 |
| Gage Length (Decimal Inch) | 5.7500 |
| Flute Length (mm) | 140.55 |
| Flute Length (Decimal Inch) | 5.5335 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Through Coolant | Through Coolant |
| Number of Shank Flats | 1 |
