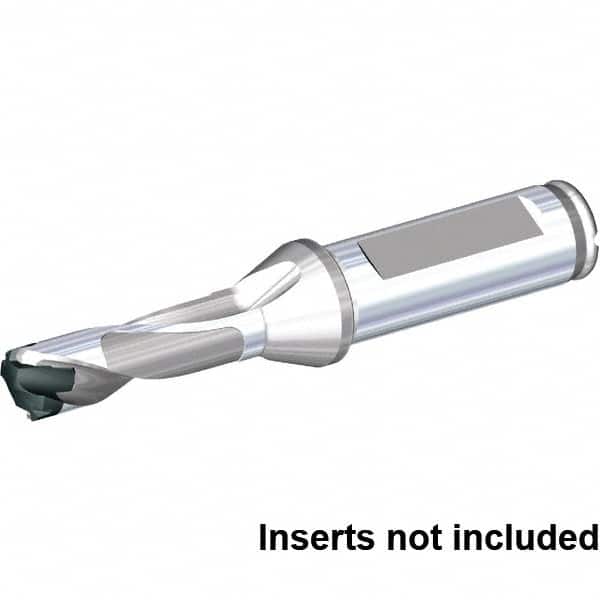

Kennametal - Series KenTIP, Head Connection Q, 8xD, 5/8" Shank Diam, Drill Body - 136.53mm Drill Body Length to Flange, KTIP Toolholder, 13.89mm Nose Diam, 184.53mm OAL, 136.53mm Drill Body Length, 131.03mm Flute Length, Through Coolant
Item #: 54415559
Brand: Kennametal
Model #: 5307871
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Head Connection Size | Q |
| Drill Depth by Diameter Ratio | 8xD |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Drill Body Length to Flange (mm) | 136.53 |
| Drill Body Length to Flange (Decimal Inch) | 5.3750 |
| Toolholder Style | KTIP |
| Nose Diameter (mm) | 13.89 |
| Nose Diameter (Decimal Inch) | 0.5469 |
| Overall Length (mm) | 184.53 |
| Overall Length (Decimal Inch) | 7.2648 |
| Gage Length (mm) | 136.53 |
| Gage Length (Decimal Inch) | 5.3750 |
| Flute Length (mm) | 131.03 |
| Flute Length (Decimal Inch) | 5.1585 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
| Through Coolant | Through Coolant |
| Number of Shank Flats | 1 |
