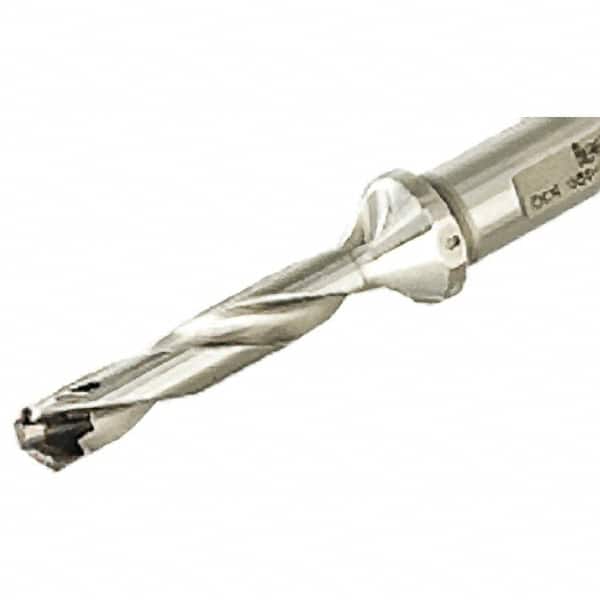

Iscar - 30 to 30.9mm Diam, 5xD, 155.5mm Max Drill Depth, 32mm Shank Diam, 265.4mm OAL, Replaceable Tip Drill - HCP-IQ, ICK, ICM, ICP Insert, 30 Seat Size, DCN Toolholder, Series SumoCham
Item #: 54447883
Brand: Iscar
Model #: 3203535
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 30.00 |
| Maximum Drill Diameter (mm) | 30.90 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 155.50 |
| Shank Diameter (mm) | 32.00 |
| Insert Style | HCP-IQ; ICK; ICM; ICP |
| Insert Seat Size | 30 |
| Toolholder Style | DCN |
| Shank Type | Flat Shank |
| Tip Length (mm) | 5.46 |
| Flute Length (mm) | 155.50 |
| Body Length (mm) | 197.40 |
| Overall Length (mm) | 265.40 |
| Shank Length (mm) | 60.00 |
