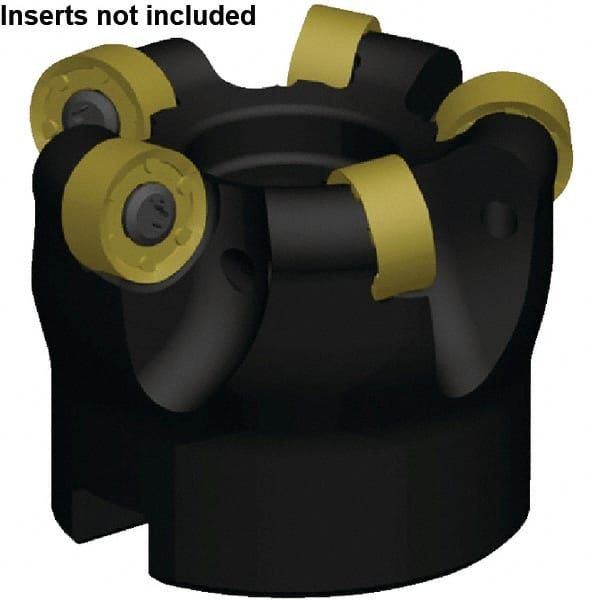

Kennametal - 84mm Cut Diam, 3.96mm Max Depth, 32mm Arbor Hole, 8 Inserts, RNGJ1605M0____ Insert Style, Indexable Copy Face Mill - RODEKA 16 Cutter Style, 17,000 Max RPM, 50mm High, Through Coolant, Series Rodeka
Item #: 54462494
Brand: Kennametal
Model #: 5153895
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 84.00 |
| Cutting Diameter (Decimal Inch) | 3.3070 |
| Maximum Depth of Cut (mm) | 3.96 |
| Maximum Depth of Cut (Decimal Inch) | 0.1560 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2600 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9690 |
| Series | Rodeka |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | RNGJ1605M0____ |
| Cutter Style | RODEKA 16 |
| Through Coolant | Yes |
| Maximum RPM | 17000 |
| Hub Diameter (Decimal Inch) | 3.0710 |
| Cutting Direction | Right Hand |
| Overall Diameter (Decimal Inch) | 3.6980 |
| Maximum Cutting Diameter (Decimal Inch) | 3.937 |
