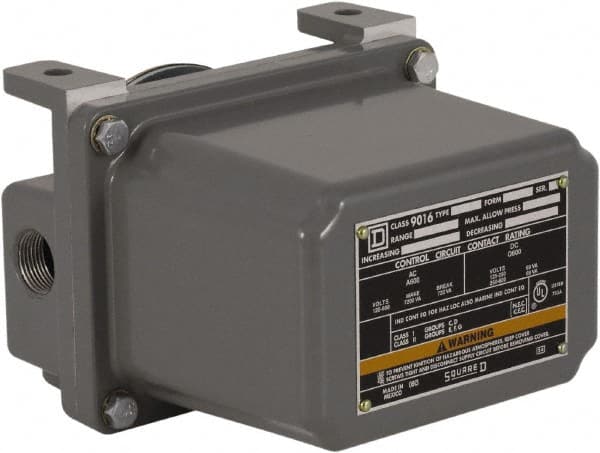

Square D - 7 and 9 NEMA Rated, DPDT, 0.2 to 10 psi, Vacuum Switch Pressure and Level Switch - Adjustable Pressure, 120 VAC, 125 VDC, 240 VAC, 250 VDC, Screw Terminal
Item #: 54525308
Brand: Square D
Model #: 9016GAR21
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Pressure Switch Type | Vacuum Switch |
| NEMA Rating | 7; 9 |
| Maximum Pressure Setting | 10 psi |
| Minimum Pressure Setting | 0.2 psi |
| Differential Pressure Type | Adjustable |
| Maximum Differential Pressure (inHg) | 28.70 |
| Minimum Differential Pressure (inHg) | 0 |
| Voltage | 120 VAC; 125 VDC; 240 VAC; 250 VDC |
| Contact Form | DPDT |
| Terminal Type | Screw |
| Standards Met | CSA File LR26817; RoHS Compliant; UL 508; UL Listed File E12443 CCN NOWT |
| Amperage | 0.11; 0.22; 3; 6 |
