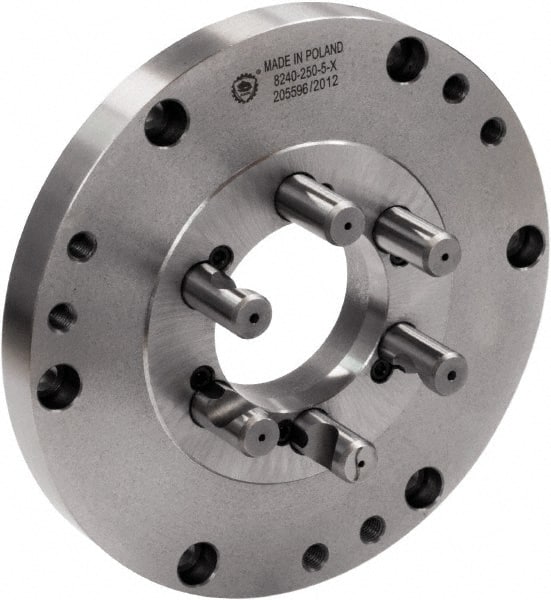

Bison - Adapter Back Plate for 20" Diam Self Centering Lathe Chucks - D1-11 Mount, 7.5906" Through Hole Diam, 19.685" OD, 0.2362" Flange Height, Cast Iron
Item #: 54546106
Brand: Bison
Model #: 7-878-209F
Exact Tooling IR#: 04
Features and Benefits
Cast iron offers good vibration, resistance, good wear resistance and machinability. It is heavier and more economical than steel.
| Product Specifications | |
|---|---|
| Nominal Chuck Size | 20 |
| Spindle Nose Type | D Series |
| Mount | D1-11 |
| Chuck Compatibility | Self-Centering Chucks |
| Through-Hole Diameter (Decimal Inch) | 7.5906 |
| Chuck Diameter Compatibility (Inch) | 20 |
| Chuck Diameter Compatibility (Decimal Inch) | 20.0000 |
| Outside Diameter (Decimal Inch) | 19.6850 |
| Flange Height (Decimal Inch) | 0.2362 |
| Material | Cast Iron |
