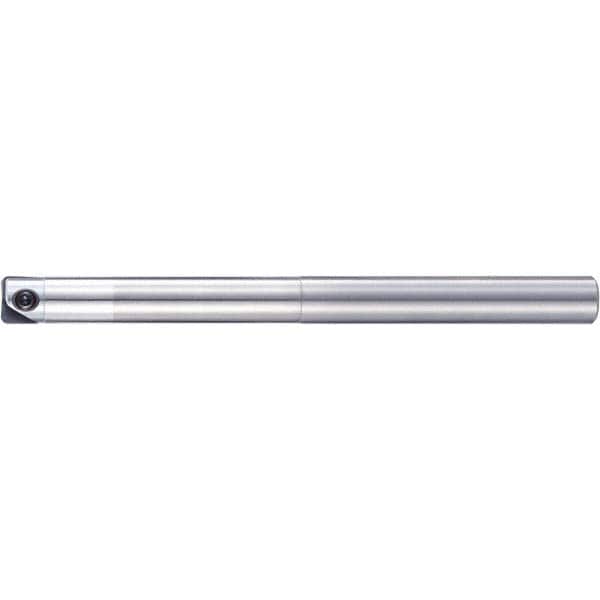

Indexable Square-Shoulder End Mill: PFRR1000SA1000LL1050CS, 1" Cut Dia, 5-1/2" Max Depth of Cut, 1" Dia Cylindrical Shank
Item #: 55702922
Brand: OSG
Model #: 52200014
Product Specifications
| Cutting Diameter | 1.0000 in |
| Cutting Diameter | 1 |
| Overall Length (Decimal Inch) | 10.5000 |
| Overall Length (Inch) | 10-1/2 |
| Maximum Depth of Cut (Decimal Inch) | 5.5000 |
| Cutter Style | PFR |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 52200 |
| Lead Angle | 0 |
| Head Length (Decimal Inch) | 10.5 |
| Insert Compatibility | PFR? |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | No |
| Cutting Diameter | 1.0000 in |
| Cutting Diameter | 1 |
| Overall Length (Decimal Inch) | 10.5000 |
| Overall Length (Inch) | 10-1/2 |
| Maximum Depth of Cut (Decimal Inch) | 5.5000 |
| Cutter Style | PFR |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 52200 |
| Lead Angle | 0 |
| Head Length (Decimal Inch) | 10.5 |
| Insert Compatibility | PFR? |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | No |
| MSC Part # | 55702922 |
| Mfr Part # | 52200014 |
| Country of Origin Country of Origin is subject to change | Japan |
