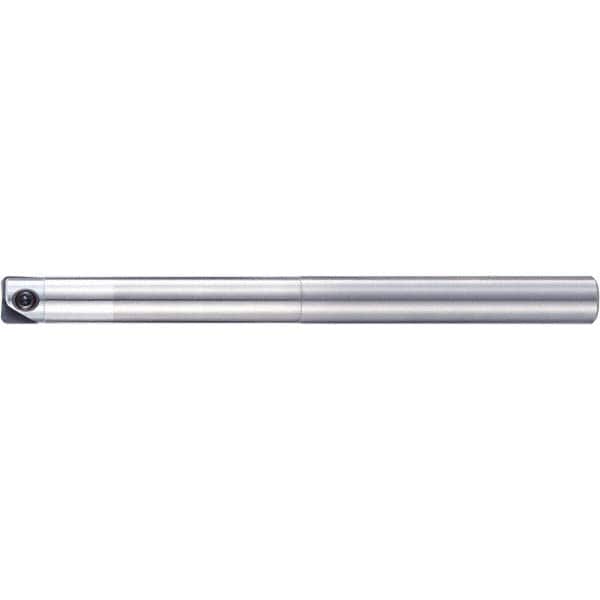

Indexable Square-Shoulder End Mill: PFRR0625SA0625LL750CS, 5/8" Cut Dia, 3-3/4" Max Depth of Cut, 5/8" Dia Cylindrical Shank
Item #: 55702955
Brand: OSG
Model #: 52200012
Product Specifications
| Cutting Diameter | 0.6250 in |
| Cutting Diameter | 5/8 |
| Overall Length (Decimal Inch) | 7.5000 |
| Overall Length (Inch) | 7-1/2 |
| Maximum Depth of Cut (Decimal Inch) | 3.7500 |
| Cutter Style | PFR |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 52200 |
| Lead Angle | 0 |
| Head Length (Decimal Inch) | 7.5 |
| Insert Compatibility | PFR? |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | No |
| Cutting Diameter | 0.6250 in |
| Cutting Diameter | 5/8 |
| Overall Length (Decimal Inch) | 7.5000 |
| Overall Length (Inch) | 7-1/2 |
| Maximum Depth of Cut (Decimal Inch) | 3.7500 |
| Cutter Style | PFR |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 52200 |
| Lead Angle | 0 |
| Head Length (Decimal Inch) | 7.5 |
| Insert Compatibility | PFR? |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | No |
| MSC Part # | 55702955 |
| Mfr Part # | 52200012 |
| Country of Origin Country of Origin is subject to change | Japan |
